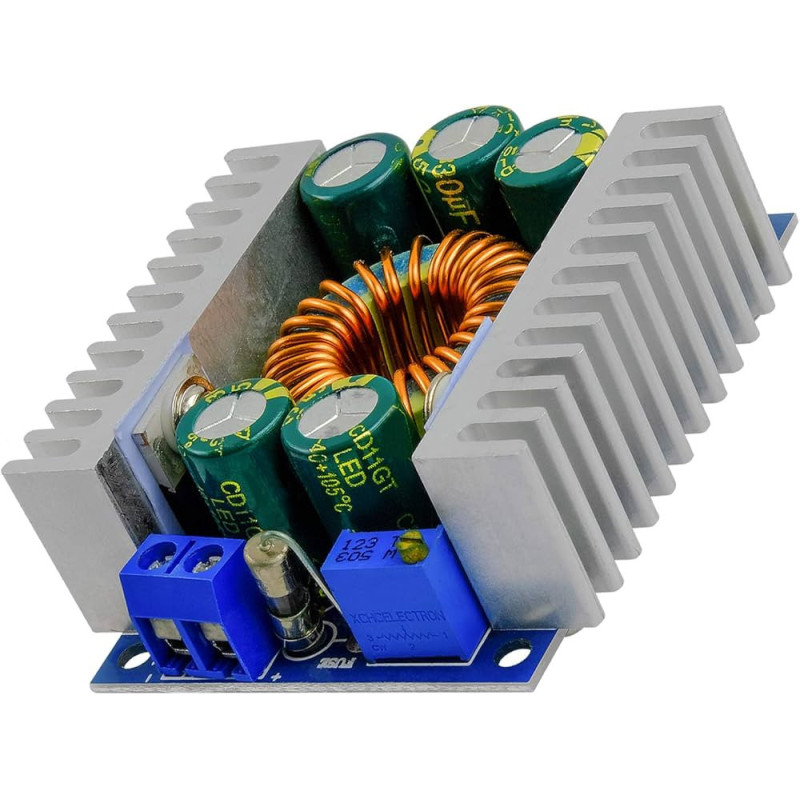

XL4016E1 DC To DC 5A Step Down Converter
֏5,000.00
No tax
A high power DC - DC step down power supply module capable of supplying currents up to 5A. It has a wide input/output operating range of 5V to 30V input and 1.5V to 28V output. The module includes two large heatsinks to help dissipate heat when used at its upper operating range. Output voltage and maximum load current is adjustable by a precision multi-turn potentiometer.
Product code: HCMODU0129
Input Voltage: 5 to 30V
Output voltage: 1.5 to 28V
Max output current (continuous): 5.3A (see table)
Conversion efficiency (Vin=12.0V, Vout=5V Iload=4A): 88%
Dimensions: 65mm x 47.5mm x 23mm
