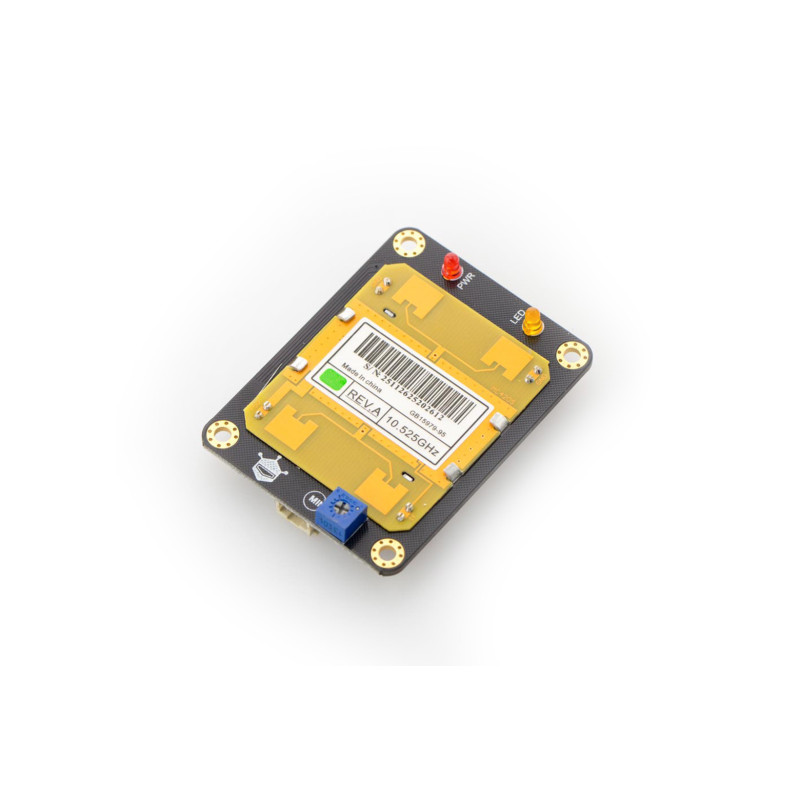

Digital 10.525GHz Microwave Sensor (Motion Detection)
֏5,000.00
No tax
A 10.525GHz microwave motion sensor detects moving objects using the Doppler effect, unaffected by temperature. It's used for speed measurement, liquid levels, and more.
Working Voltage: 5V + 0.25V
Working Current (CW): 60mA max., 37mA typical
Interface: Gravity 3-Pin interface（Digital）
Size: 48.5x63mm
Emission parameters:
Detection Distance: 2-16M continuously adjustable
Emission Frequency: 10.525 GHz
Precision Frequency Setting: 3MHz
Output Power (minimum): 13dBm EIRP
Harmonic Emission: < -10dBm
Average Current (5%DC): 2mA typ.
Pulse Width (Min.): 5uSec
Load Cycle (Min.): 1%
Reception Parameters:
Sensitivity:(10dB S/N ratio) 3Hz to 80Hz
Bandwidth: -86dBm
3Hz to 80Hz Bandwidth Clutter: 10uV
Antenna Gain: 8dBi
Vertical 3dB Beam Width: 36 degrees
Level 3dB Beam Width: 72 degrees
5 Items
Comments (0)
No customer reviews for the moment.
A 10.525GHz microwave motion sensor detects moving objects using the Doppler effect, unaffected by temperature. It's used for speed measurement, liquid levels, and more.
