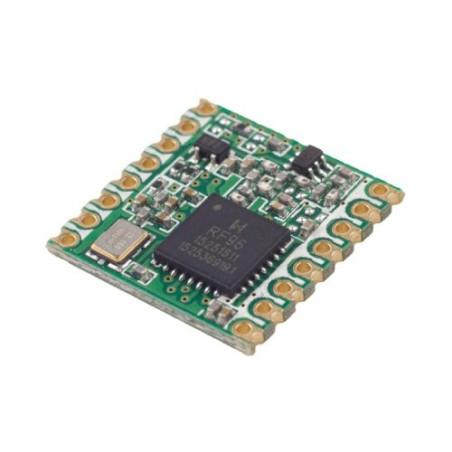

RFM95 LoRa 868MHz Band Wireless Module
֏5,000.00
No tax
The RM95 module is a wireless communication device based on the LoRa (™) wireless specification. LoRa devices sacrifice data rate for low power and an exceptionally longer range of up to several kilometers. This makes these modules ideal for remote sensor applications where the range of other wireless technologies such as WiFi, Bluetooth etc. are insufficient. LoRa devices can pick up very weak signals because of how sensitive they are, and their spread-spectrum technology means that they don’t get easily disrupted by other electrical signals.
LoRa(TM) Modem.
Supply voltage: 1.8 to 3.7V
Frequency Band: 868MHz
168 dB maximum link budget.
+20 dBm - 100 mW constant RF output vs. V supply.
+14 dBm high efficiency PA.
Programmable bit rate up to 300 kbps.
High sensitivity: down to -148 dBm.
Bullet-proof front end: IIP3 = -12.5 dBm.
Excellent blocking immunity.
Low RX current of 10.3 mA, 200 nA register retention.
Fully integrated synthesiser with a resolution of 61 Hz.
FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.
Built-in bit synchronizer for clock recovery.
Preamble detection.
127 dB Dynamic Range RSSI.
Automatic RF Sense and CAD with ultra-fast AFC.
Packet engine up to 256 bytes with CRC.
Built-in temperature sensor and low battery indicator.
Module Size：16*16mm
