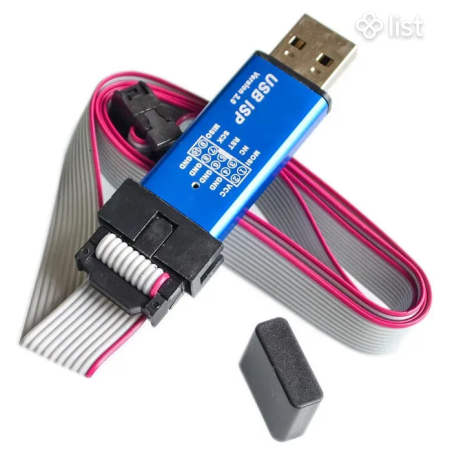

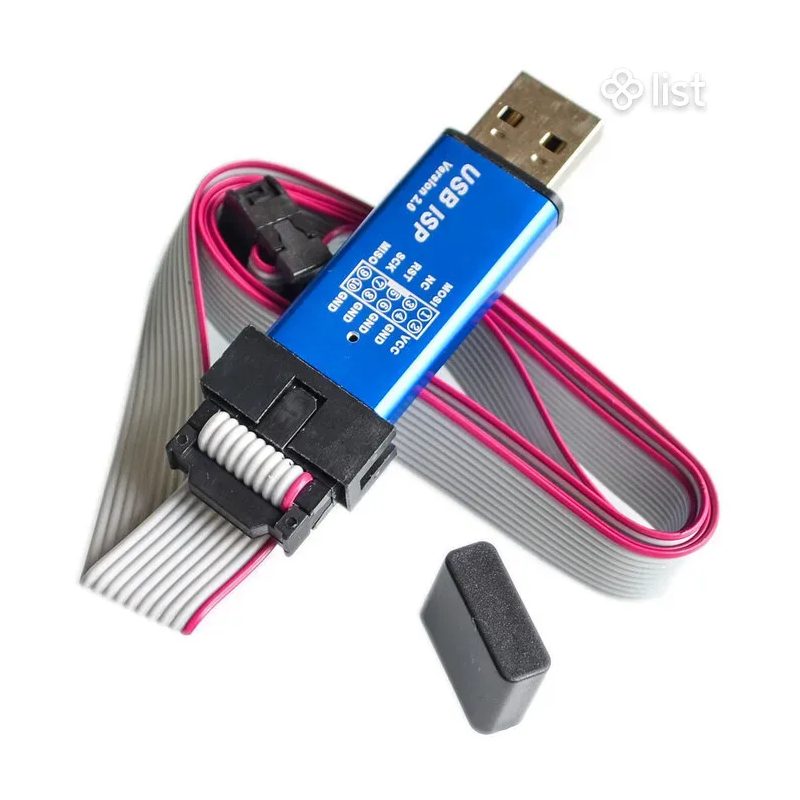

USBASP USBISP ISP Programmer Downloader for Arduino 51 ATMEL AVR Support 64 Bit Win7 & 32Bit Win98 WinMe Win2000 WinXP Win Vista
֏3,000.00
No tax
Use USBASP to burn AT89S51AT89S52, please use the DC jack to
supply power to the small system separately or you can't burn it.
USBASP download line items include:
USB-ISP (5V version)
IDC10 core cable (about 75CM long)
This downloader features
1. No need to install the driver. After plugging in the USB port of the
computer, the computer will automatically recognize the input
device of the computer, and then automatically drive the
downloader. The device can be used in the lower right corner of the
computer. The red indicator light is on. When the program is
programmed, the green indicator light is on. Perfect support for
WN2K, WINXP, VISTA, WN7 and other operating systems.
AT89S51 and S52 series pin and download line
corresponding connection definition:
MOSI → P1.5
MISO → P1.6
SCK → P1.7
/RES → RST
GND → GND
5V → VCC
Scope of application
Partial list with support chip
51 series single chip microcomputer
AT89SS1, AT89S52AT89LS51 AT89LS52 AT89LS53
AVR series MCU:
200 years AT90S1 AT90S2313.AT90S2323. AT9OL S2323.AT90S2343.
AT9OL S2343.AT90S4433. AT9OD S4433, AT90S8515, AT90S8535,
AT90LS8535, ATmega48, AT mega48V, AT mega88, ATmega88V,
AT megal68, ATmegal68V. ATmega8, ATmega8L, ATmega16,
AT megal6LAT mega32, ATmega32LAT mega64, ATmega64L,
ATmegal61, AT megal61l, ATmegal63, atmegal63l, ATmega323,
ATmega323LATmega8515, AT mega8515L, ATmega8535,
ATmega8535L, ATmegal03, ATmega103L, ATmegal 28,
ATmegal 28L.ATmegal62. ATmegal62LAT megal69 ATmcga169L,
ATtiny12 ATtiny12L, ATiny13 ATtiny13LATtinyl5, ATtiny15LATtiny22
ATiny221L ATtiny26, ATiny26L
AT89S51 AT89S52 AT89S53 AT89S8253 AT89S2051 AT89S8252
AT89S4051
AVR series
AT90can128 AT90can32 AT90can64 AT90pwm2 AT90pwm3
AT90s1200 AT90s2313 AT90s2323 AT90s2343 AT90s4414
AT90S8515 AT90S8535 AT90usb1286 AT90usb1287
Atmega103 Atmega128 Atmega1280 Atmega1281 Atmega16
Atmega161 Atmega162 Atmega163 Atmega164 Atmega165
Atmega168 Atmega169 Atmega2560 Atmega2561 Atmega32
Atmega323 Atmega324 Atmega325 Atmega3250 Atmega3259
Atmega329 Atmega3290 Atmega406 Atmega48 Atmega64
Atmega640 Atmega644 Atmega645 Atmega6450 Atmega649
Atmega6490 Atmega8 Atmega8515 Atmega8535 Atmega88
Attiny11 Attiny12 Attiny13 Attiny15 Attiny22 Attiny2313 Attiny24
Attiny25 Attiny26 Attiny261 Attiny28 Attiny44 Attiny45 Attiny46
Attiny461 Attiny84 Attiny85 Attiny861
