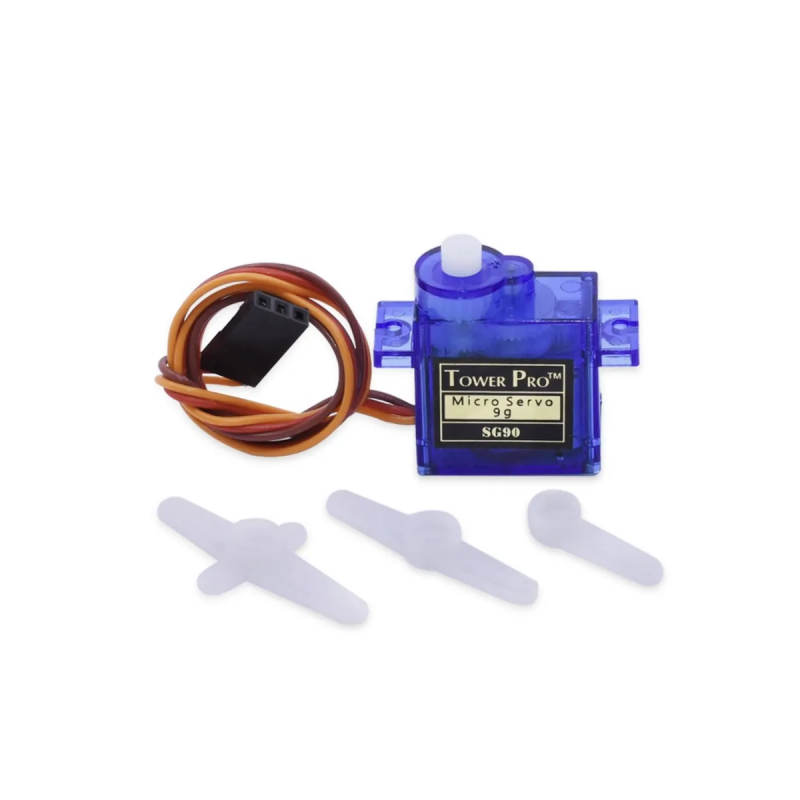

SG90 Micro Servo Motor for Arduino Raspberry Pi DIY
֏1,600.00
No tax
SG90 Servo Motors Kit: for Arduino Raspberry Pi DIY
Voltage: 4.8V～6.0V
Running angle: 180°±1° (500→2500 μsec)
Rotating direction: Counter Clockwise (500→2500μsec)
The SG90 has 3 wire interfaces: Red wire-5V, Brown Wire-Ground, Yellow wire-digital pin 9
Control system: Change the pulse width
Amplifier type: Analog controller
Operating trave: 180°±1° (500→2500 μsec)
Left&Right travelling Angle deviation: ≤ 6°
Centering deviation: ≤ 1°
Neutral position: 1500 μsec
Dead band width: 7 μsec
Rotating direction: Counter Clockwise (500→2500μsec)
Pulse width range: 500→2500 μsec
Maximum Physical Angle: About 200° (Manual control)
Merchandise included：
3Pcs Mini Servo SG90 9g Servo Kit
1Pcs screwdriver
